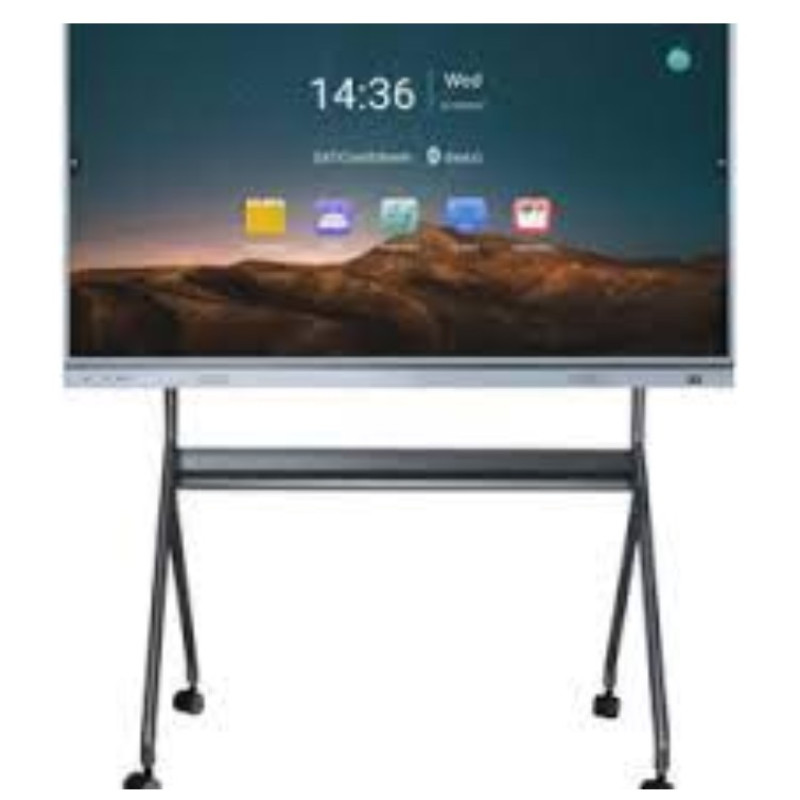

TRUEVIEW 75" AIO SMART INTERACTIVE FLAT PANEL DISPLAY

Technical Specification
LCD Panel
Diagonal Size	75”
Backlight Type	D LED
Aspect Ratio	16:9
Pixel pitch	0.4296(H) x 0.4296(L)
Response	5ms to 8ms
Resolution	3840 x 2160
Contrast Ratio	6000:1 (Static) / 100k:1 (Dynamic)
Brightness(cd/m2)	450cd/m2
Display area	1650.24mm(H) X 928.26mm(V)
Color	16.7 Million color
View Angle	H:178°/ 178° V:178° / 178°
System
OS	Android 11.0
CPU	Amlogic T982, Cortex-A55, 1.5GHz
GPU	Mali-G52
RAM	4GB
FLASH (Memory)	32GB
I/O Port
Rear Input	HDMI IN*2, USB2.0*1, USB3.0*1, TOUCH USB*1, RS-232*1, Earphone*1, COAX*1, RS-232*1, 2.4G Wi-Fi*1, 5G WiFi*1, 5G Hotpoint*1, Bluetooth5.0*1, AV input*1, VGA IN*1(optional), PC-AUDIO*1(optional), YPbPr Input*1(option), HDMI Output (option), RF Tuner (option)
Front Input	Type-C*1, (Default is the features of USB and Charge; The features of HDMI Input, LAN, USB are Options), USB*3, HDMI*1, Touch USB *1
Media Format
Audio	Mp3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP
Video	H.264, VP 8, RV, WMV, AVS, H.263, MPEG4
Picture	JPG, BMP, PNG
Touch Features
Touch Type	Infrared Touch, 20points Touch
Glass	3mm, Morse 8 grade tempered glass, Explosion proof, anti glare, etc.
Transmittance	＞92%
Response Time	≤5 ~ 8ms
Touch Precision	≤1mm
Touch Object	All Opaque object, such as finger, pen etc.
MTF	60 million touch by each points
Minimum Touch Object	≥ 1mm
Anti light	Incandescent lamp (220V,100W) Distance > 350mm, Sunlight illumination<90000Lux
Interface	USB
Audio
Speaker	2 x 20W (Stereo)
OPS PC (optional)
CPU	Core i5 / Core i7
Memory	Option 4GB / 8GB
Hard disk	SSD: 128GB/256GB + Option to connect SATA HDD up to 4 TB
I/O port	USB2.0*2, USB3.0*2, MIC*1, LINE OUT*1, RJ45*1, VGA*1, HDMI*1
OPS Dimension	30mm or 42mm
Tech Features
Language	English
Video Format	PAL, NTSC
Working Mode	24×7 hrs.
Display Light	60,000* hrs.
Frequency	Horizontal Frequency : 20 ~ 82KHz (Analog & Digital) Vertical Frequency: 55 ~ 75Hz
Optimum Resolution	3840 x 2160 @ 30HZ
Support Resolution	3840 x 2160, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1440 x 1050, 1360 x 768, 1280 x 1024 1280 x 768, 1024 x 768, 832 x 624, 800 x 600, 720 x 400, 600 x 480
Video Format	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
Function Features
Amazing OSD	Humanity beautiful OSD, Touch control
Multiple Control	Support remote control, keyboard, RS232, Touch control
Touch OSD	Touch slide from bottom to start the hidden OSD menu
Sunlight Readable	Suit for lots of place, it can readable at sunlight
Touch	20 points touch
Multiple I/O	Support HDMI / VGA / CVBS / YPbPr / Display Port / TV
Input Auto Scan	Auto scan the input signal, and countdown tips
Customize Mode	Preset Standard, Warm, Cinema, Meeting work mode and support customize
Airplay	iPhone, iPad wireless display on TAIO monitor by airplay
Software	Whiteboard, Mirror display, Comment etc.
Physical Features
Power Supply	AC 100 ~ 240V/ 2-5A, 50-60Hz
Consumption	Working ≤ 250W, Standby ≤ 1W
Body material	Aluminium, Metal
Color	Deep Grey Front, Black Cover
Temperature	Work: 0°C ~50°C, Storage：-10° ~ 60°C
Humidity	Work: 10% to 90%, Storage: 0 to 95% (Non Condensing)
Noise	Working Noise<50dBA
Product Dimension	1699.2*1038.1*90.2mm
VESA hole	600 x 400 mm(4*M8 screw)
Weight	NW: 58Kg±1.5Kg, GW: 69Kg±1.5Kg
Package Dimension	1870*1150*220MM
Other
Accessories	Remote control*1, Power Cord*1, Wi-Fi antenna *1, USB TOUCH CABLE
Option	HDMI, DVI, VGA, BNC, Floor stand set
Certification	BIS, RoHS, CE, FCC
* Product specifications are subject to change without prior notice.
